IIS -Web server setup

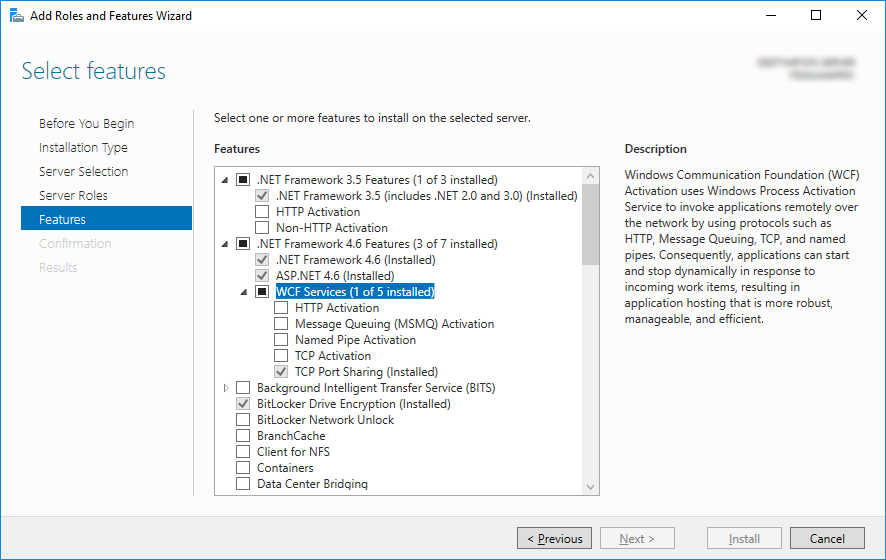

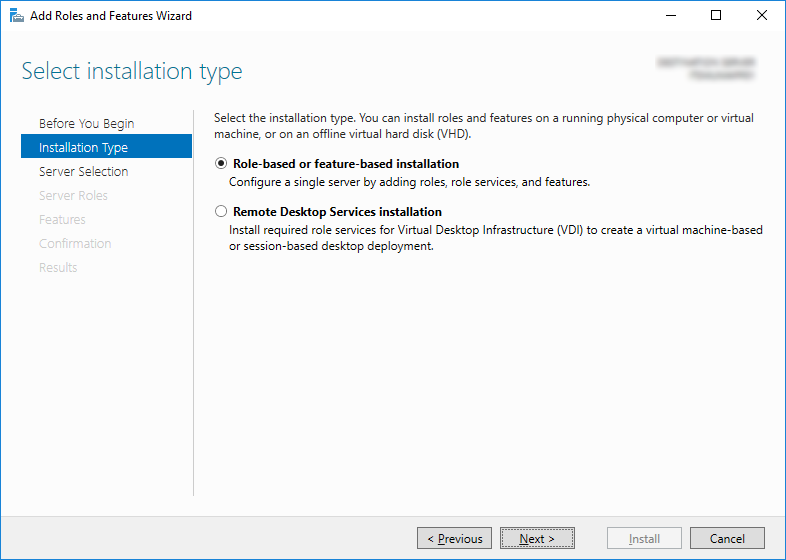

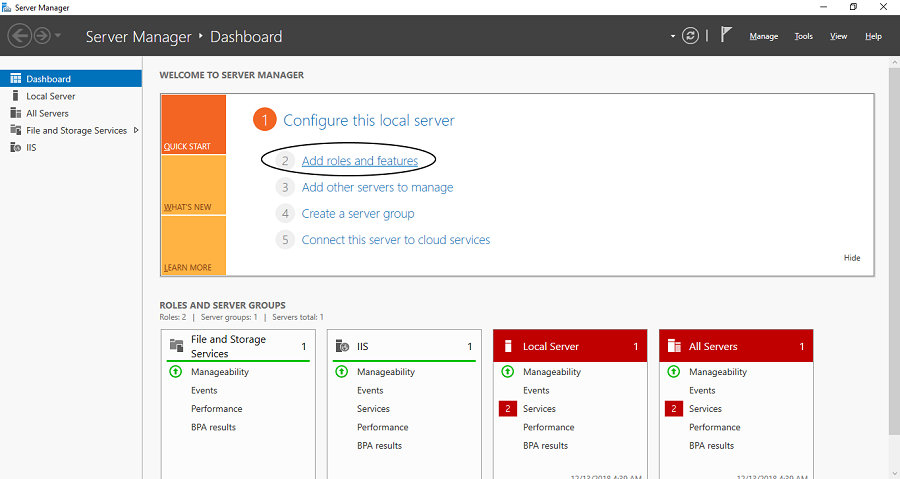

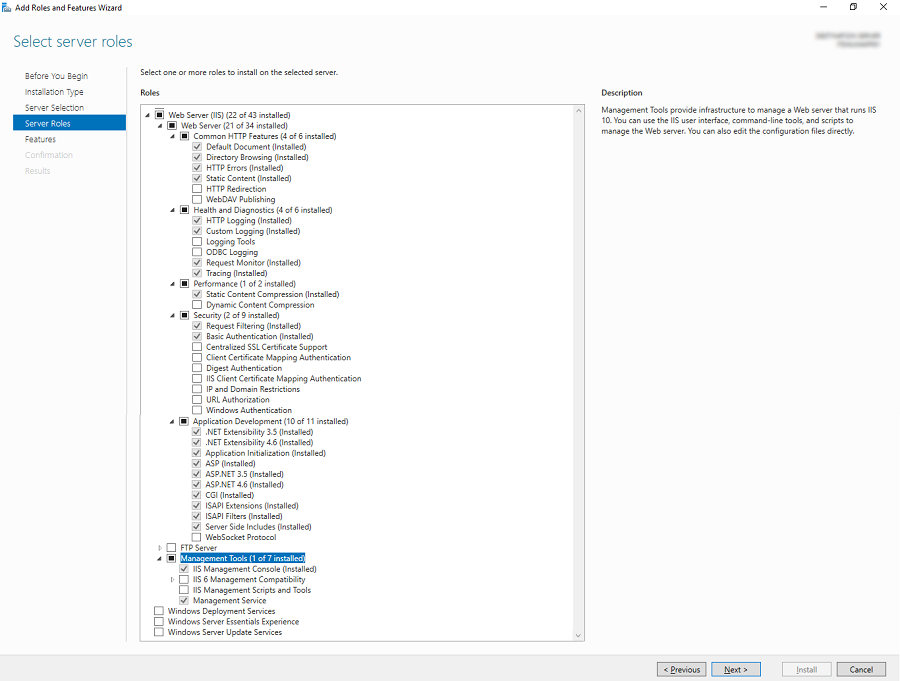

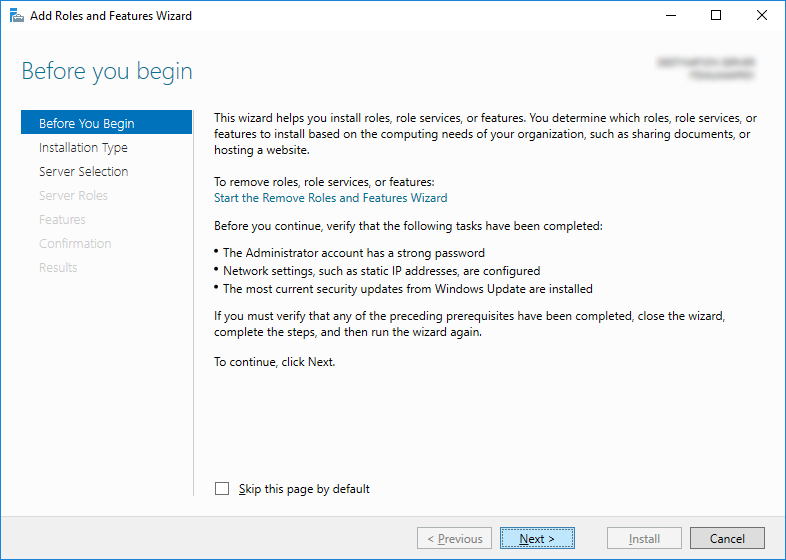

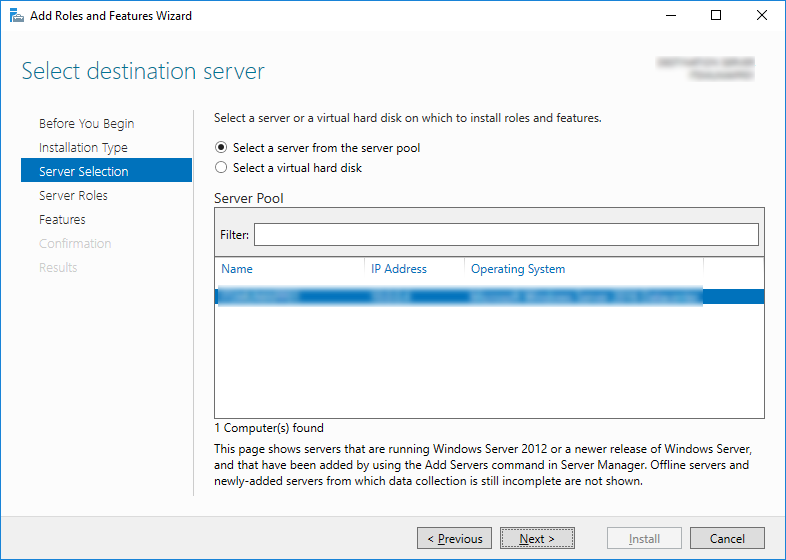

1. Go to “Server Manager” and add the following roles & features:

2. Go to “IIS Manager”

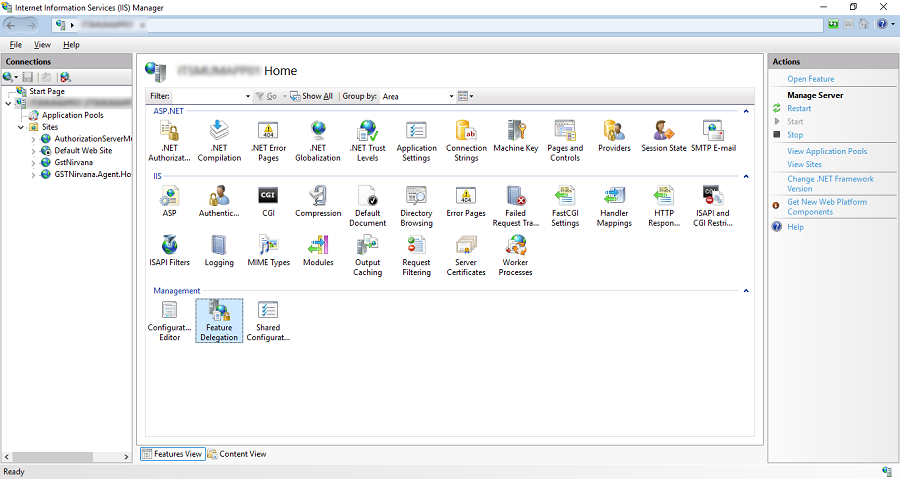

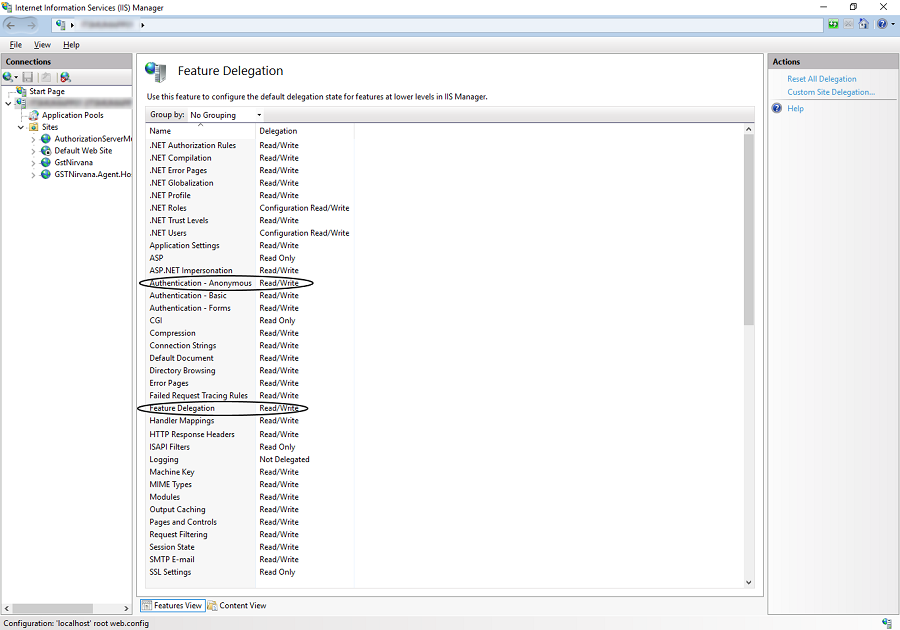

3. Go to “Feature Delegation” and change features as follows:

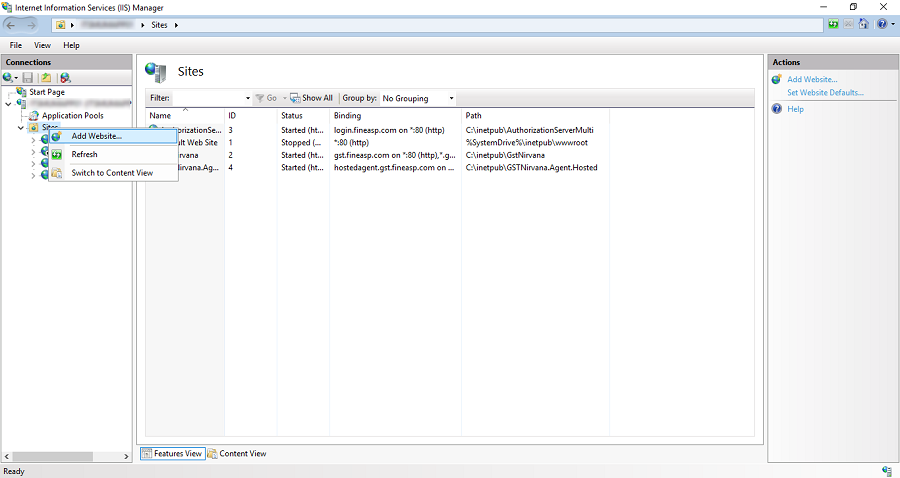

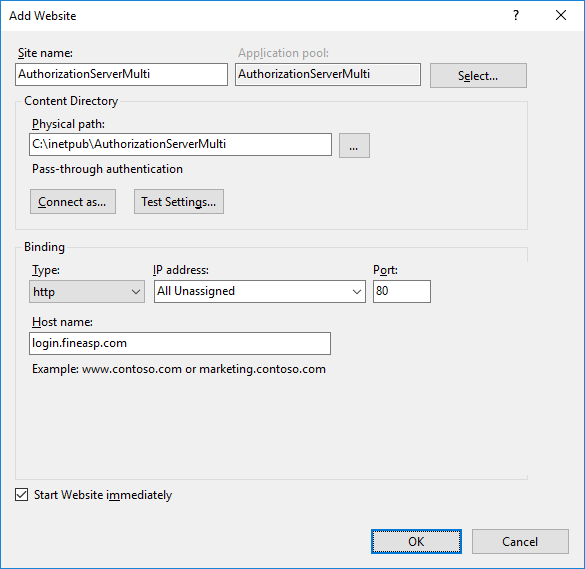

4. For an example we can add the following sites as follows:

   1. AuthorizationServerMulti

   2. GstNirvana

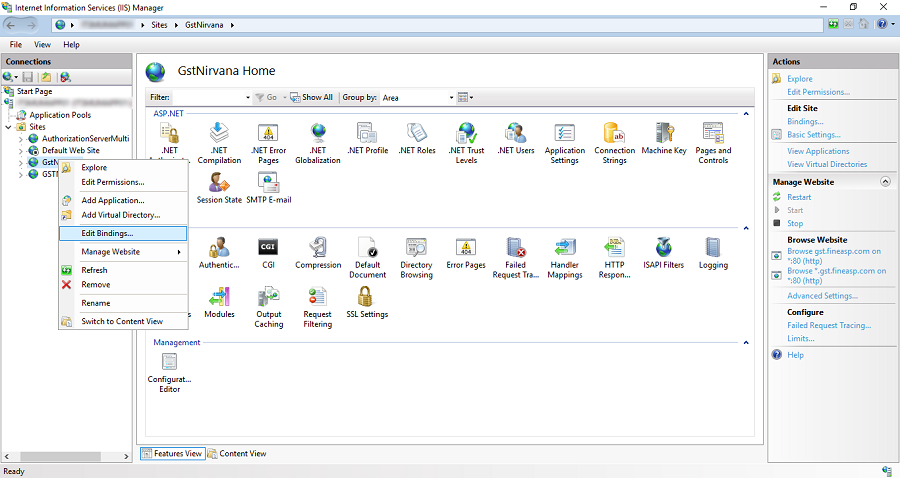

5. Edit the site bindings as follows:

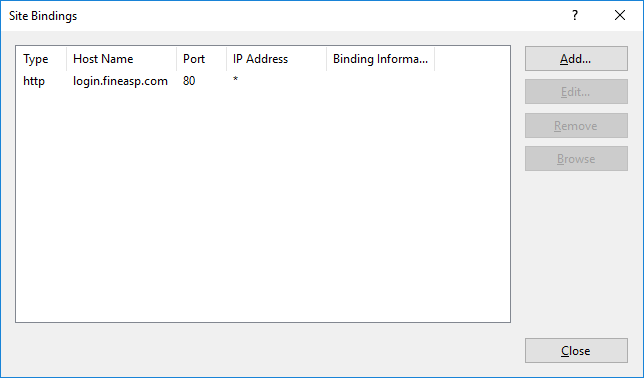

1. AuthorizationServerMulti

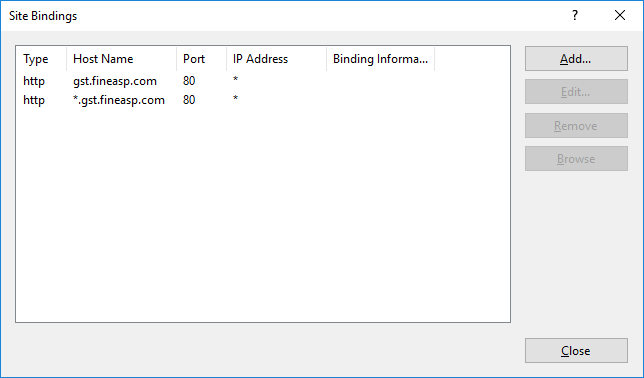

2. GstNirvana

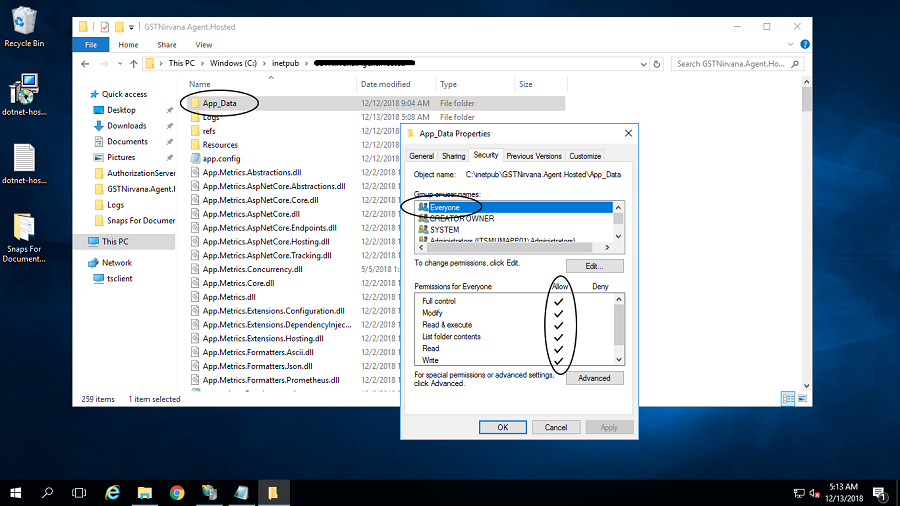

8. Assign “Full Control” rights for “Everyone” group on “App_Data” folders of site.

9. Install complete “Web Deploy 3.6” from following URL:

https://www.microsoft.com/en-us/download/details.aspx?id=43717

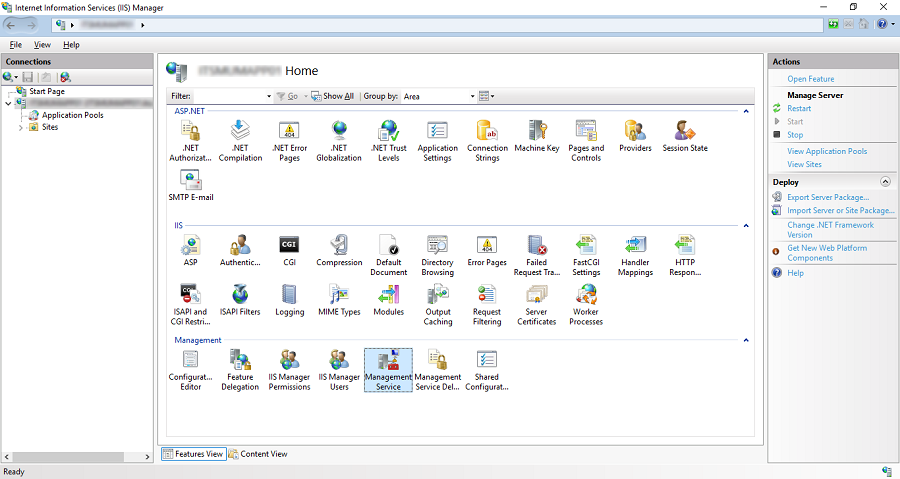

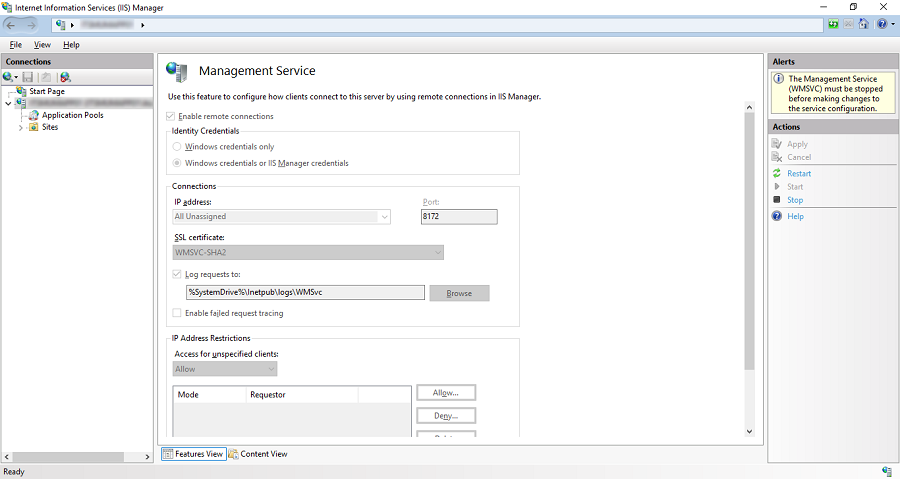

10. a) Configure “Management Service” as follows: (Windows Server version)

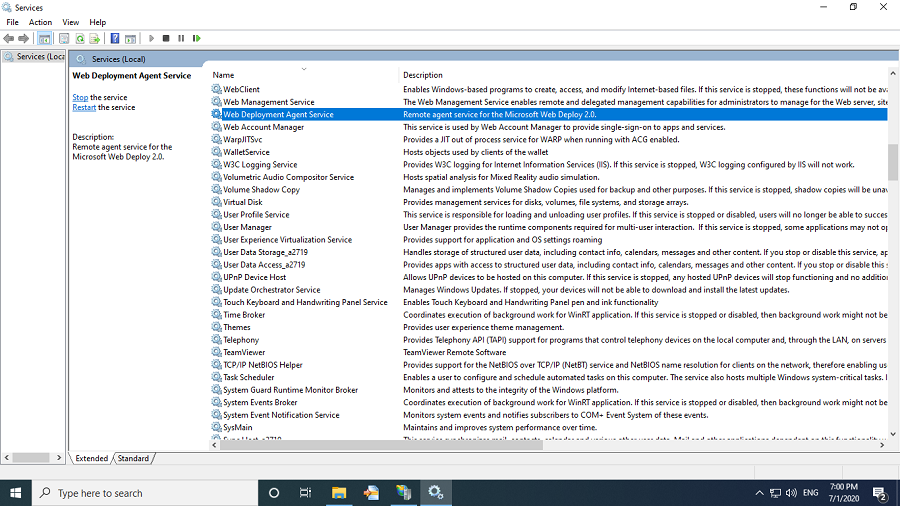

10. 2. Configure “Management Service” as follows: (Windows non- Server version)

In Non-server versions of windows, the “Web Deployment Agent Service” should run in background for web deploy.

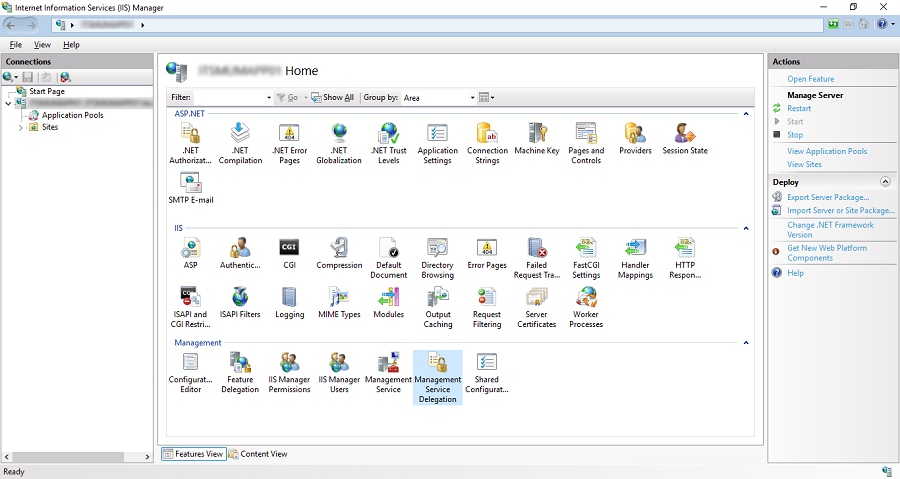

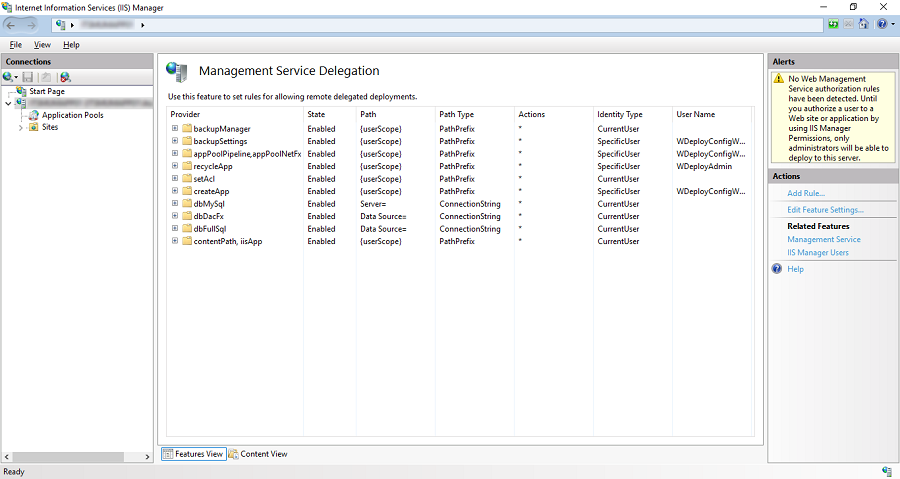

11. Configure “Management Service Delegation” as follows:

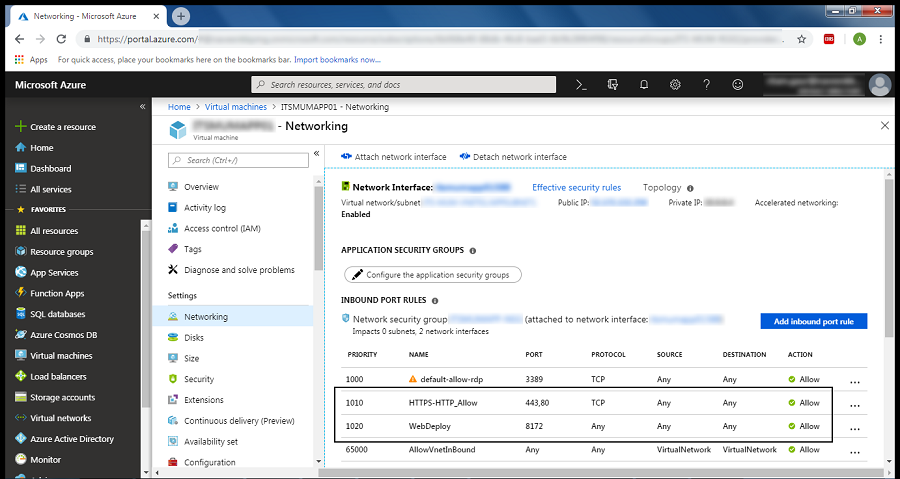

12. Log in to the Azure portal, open the VM and select the “Networking” section & add following two inbound port rule in firewall entries:

    1. http - Port 80

2. WebDeploy - Port 8172

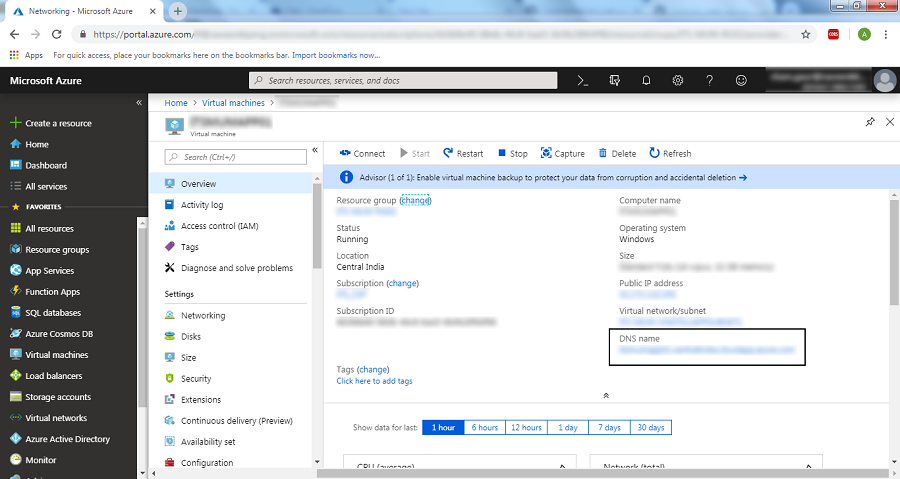

13. To use the in-built web publishing wizard in Visual Studio, the virtual machine must be configured with a DNS name. from the Azure portal, navigate to the “Overview” page of your virtual machine, under “DNS name”, click “Configure”, provide a globally unique DNS name. (A green tick appears when the name is validated.) & click Save to save the configuration:

14. Follow the following article to setup publish profiles in Visual Studio projects:

https://github.com/aspnet/Tooling/blob/AspNetVMs/docs/publish-web-app-from-visual-studio.md
